Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-51M

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 2inch 4SH

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 300T

System Pressure : 31.5Mpa

Power : Hand Pump

Size : 980*600*510mm

Weight : 200Kg

Contact Now

Used Manual 2 Inch Hose Crimping Machine Hand Held Hydraulic Hose Crimper
HAND HYDRAULIC HOSE CRIMPING MACHINE MS-51M

DESCRIPTION

MS-51M is a manually operated hose crimper that requires no electric supply. It is the ideal choice for locations without power access. With 10 die sets, it can crimp hose from 1/4 inch to 2 inch 4SH.

MAIN FEATURES
  • Forged crimping cylinder with high hardness
  • Pressure gauge for clear system monitoring during crimping
  • Ergonomic design for easy operation, even for new users
  • Die set box for safe installation and storage
TECHNICAL DATA
Model MS-51M Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 300 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage Hand Pump
Motor Power Manual Crimping
Length 980 (mm)
Width 600 (mm)
Height 510 (mm)
Weight 200 (KG)
Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power
51 CRIMPING MACHINE DIE SETS
Die No. Crimping Range Length
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 15 mm 35
15 15 - 19 mm 60
19 19 - 23 mm 60
23 23 - 26 mm 60
26 26 - 31 mm 60
31 31 - 36 mm 70
36 36 - 41 mm 70
41 41 - 47 mm 70
47 47 - 55 mm 80
55 55 - 63 mm 80
63 63 - 69 mm 80
69* 69 - 76 mm 100

• * for non standard die sets

• Customized die sets are available with different crimping sizes

OPTIONAL ACCESSORIES

• Quick Change Tool

• Quick Change Die Set Rack

• Electric Drive

• UC Control

DIE SETS

10 sets with hardness 59-63HRC, made from high quality raw material. Die sets install on machine side.

Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power

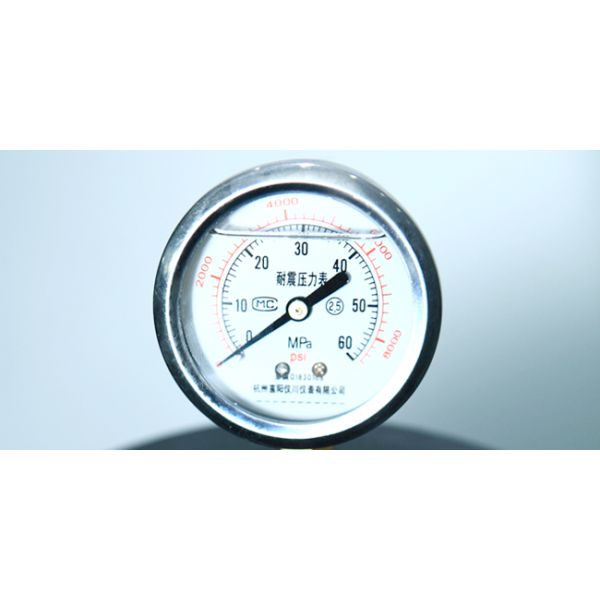

PRESSURE GAUGE

High quality high pressure gauge, shock resistant with stable configuration.

Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power
OEM SERVICE AVAILABLE

Customized color and customized outlook for hose crimping machine.

Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power
APPLICATION SAMPLES

Manual hose crimping machine can be used for hydraulic hose assembly crimping, stainless steel tube swaging, low pressure hose crimping, and cable or wire jointing.

Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power
