MS-51CG Brake Hose Crimping Machine with 500T Crimping Force High Precision Micrometer and Double Operating Mode

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-51CG

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87 mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : 51CG Brake Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 800*640*1300mm

Weight : 320Kg

Contact Now

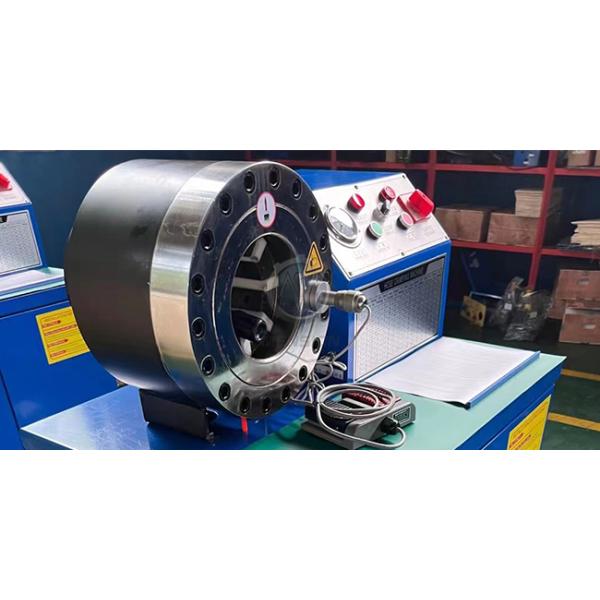

BRAKE HOSE CRIMPING MACHINE MS-51CG

DESCRIPTION


MS-51CG pressure pipe crimping machine is the best selling models in Asia. It has a very confortable operating height, so the user will not easy get tired. With a high precision crimping micrometer to control the size, no need to re-regulate every time, so improve the productivity.


MAIN ADVANTAGES


1. Advanced technology, one piece hydraulic oil cylinder;

2. Easy maintenance with simple structure;

3. High hardness die sets for high pressure hose;

4. Safe die sets installing;

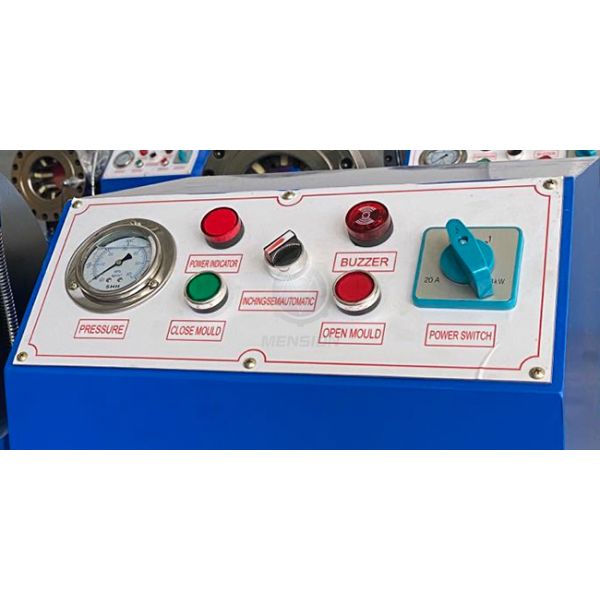

5. Double operating mode, more flexible.


TECHNICAL DATA


Model

MS-51CG Brake Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)


MS-51CG Brake Hose Crimping Machine with 500T Crimping Force High Precision Micrometer and Double Operating Mode

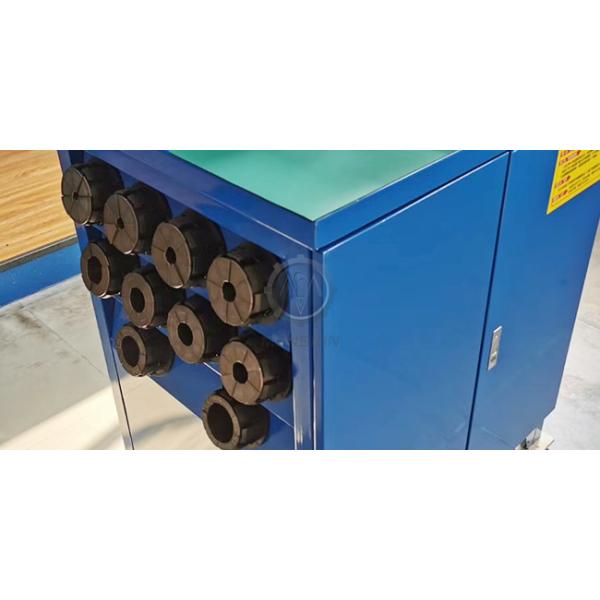

51 SERIES CRIMPER DIE SETS


Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 90


NOTE


¤ * for non standard die sets;

¤ Customized die sets are available;

¤ Special voltage 110V, 208V, 240V, 415V are availbale;


OPTIONAL


¤ Quick Change Tool

¤ UC control;
