Brake Hose Crimping Machine Braided Hose Fitting Crimping Tool Air Hose Ferrule Crimper

Name: Brake Hose Crimping Machine Braided Hose Fitting Crimping Tool Air Hose Ferrule Crimper
Brand: MENSION
Price: 1 USD

Buy cheap Brake Hose Crimping Machine Braided Hose Fitting Crimping Tool Air Hose Ferrule Crimper product

Brand Name : MENSION

Model Number : MS-E130

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 2inch 4SH

Die Sets : 10

Color : Blue

Max. Opening : 25mm

Crimping Force : 640T

Product Name : Brake Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 630*450*560mm

Weight : 190Kg

Contact Now

BRAKE HOSE CRIMPING MACHINE MS-E130

DESCRIPTION

MS-E130 brake hose crimping machine is a modern model with FINN POWER design. Also it can press high pressure hydraulic rubber hose up to 2 inch.

ADVANTAGES

1) Big crimping capacity,

2) Self-design block connect valve system,

3) Quick opening and closing,

4) Human die set choosing reference sheet,

5) Stable performance even after years of service.

TECHNICAL DATA

Model	MS-E130 Brake Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	640 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	25 (mm)
Die Sets	10
Die Set Type	130
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW)
Length	630 (mm)
Width	450 (mm)
Height	560 (mm)
Weight	190 (KG)

Brake Hose Crimping Machine Braided Hose Fitting Crimping Tool Air Hose Ferrule Crimper

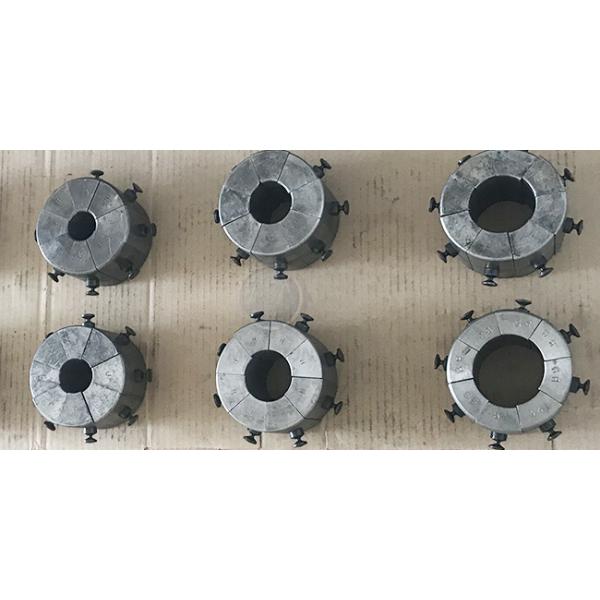

130 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	35
8*	8 - 10mm	35
10*	10 - 12mm	35
12*	12 - 14mm	35
14	14 - 16mm	60
16	16 - 20mm	60
20	20 - 22mm	60
22	22 - 26mm	60
26	26 - 30mm	70
30	30 - 38mm	70
38	38 - 46mm	70
46	46 - 54mm	80
54	54 - 64mm	80
64	64 - 69mm	80
69*	69 - 76mm	100

NOTE

1) Customized die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.

OPTIONAL

1) Quick Change Tool

2) Quick Change Die Set Rack;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack

Brake Hose Crimping Machine Braided Hose Fitting Crimping Tool Air Hose Ferrule Crimper
